    20kN Triple Sheave Pulley QHN2-3 Snatch Block Pulley Aluminum Alloy

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : QHN2-3
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000pieces/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

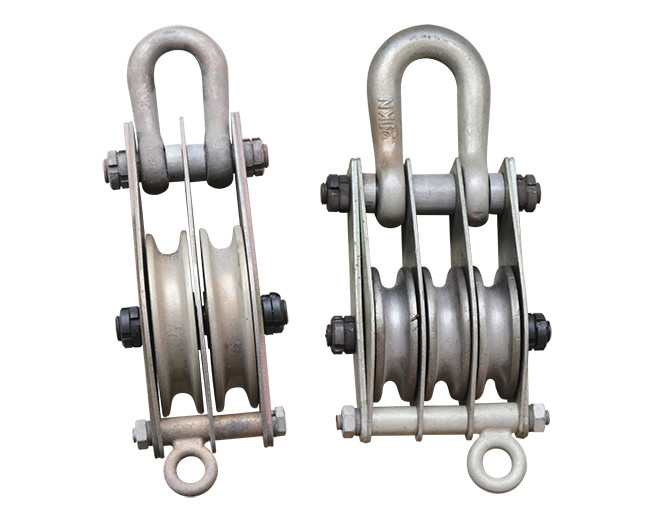

    20kN Triple Sheave Pulley QHN2-3 Snatch Block Pulley Aluminum Alloy

    Stringing Pulley QHN2-3 Lifting Tool Aluminum Alloy Service Snatch Blocks


    TYQHN Aluminum Alloy Service Snatch Blocks
    • The service snatch blocks are supplied open or closed type. The wheels are mounted on ball bearings. Applied in line construction to craning weight ,etc. This tackle adopt aluminum alloy side panel and MC nylon sheave. Single sheave block is open.
    • TYQHN Aluminum Alloy Service Snatch Blocks has been used in lifting and transportation, port loading and unloading, shipbuilding, grabs, pulleys, mining machinery, metallurgical machinery, and construction safety). The updated product after the double auxiliary plate pulley has outstanding advantages, light weight, good quality, wear resistance, simple and beautiful appearance, about 40% lighter than cast pulleys of the same specification, and has outstanding advantages that cast pulleys cannot match.
    • TYQHN Aluminum Alloy Service Snatch Blocks is an important lifting tool, the structure is simple and convenient to use, they can change the direction of the pulley block and the wire rope frequently, they can lift or move the rotational object too,especially for the pulley block assembly,,extensive be used in construction and installation field with winch, mast or other lifting machine.
    ModelNumber of sheavesRated load (kN)Outside diameter × width (mm)Max rope diameter (mm)Weight (kg)Hoisting point type
    QH1GN-1K110100×317.71.8GH
    QHN1-221080×2761.8GH
    QHN1-331080×2762.1GH
    QHN2-1K120120×359.32.2GHB
    QHN2-2220100×317.72.6GH
    QHN2-3320100×317.73.7GH
    QHN3-1130150×39223.4GHB
    QHN3-2230120×359.34.5GH
    QHN3-3330100×317.74.6GH
    QHN5-1K150166×40135.2GHB
    QHN5-2250150×39115.5GH
    QHN5-3350120×359.35.1GH
    QHN8-1K180205×49177.2GHB
    QHN8-2280166×40138.3GH
    QHN8-3380150×39117.9GH
    QHN10-1K1100246×6018.511.4GB
    QHN10-22100166×401310.2H
    QHN10-33100150×391111.7H
    QHN15-1K1150280×6521.512.1B
    QHN15-22150205×491712.8H
    QHN15-33150166×401311.8H

    20kN Triple Sheave Pulley QHN2-3 Snatch Block Pulley Aluminum Alloy

    TYQHN Aluminum Alloy Service Snatch Blocks is an important lifting tool, the structure is simple and convenient to use, they can change the direction of the pulley block and the wire rope frequently, they can lift or move the rotational object too,especially for the pulley block assembly,,extensive be used in construction and installation field with winch, mast or other lifting machine.
