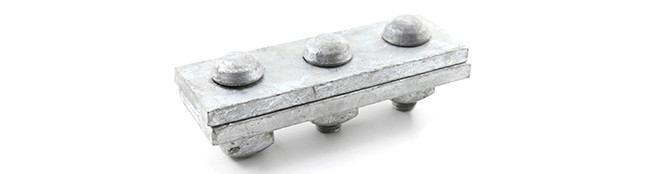

    Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : P-*G0103-H2
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 6000pieces/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Heavy Duty Drop Forged Cable Clamps 152mm 3 Bolt Suspension Clamp

    Powerline Tools P-*G0103-H2 Heavy Duty-Drop Forged Wire Clamp Bolt Suspension Clamp


    Stock No.No.of BoltBolt DiameterClamp DimensionApproximate Ship WeightStandard
    LengthWidthThickness
    Inchmmkg./100 pcsPkg.Qty./Carton
    Heavy Duty-Drop Forged
    P-*G0101-H111/242449.130.5050
    P-*G0101-H215/850449.135.0050
    P-*G0102-H121/262449.160.0050
    P-*G0102-H225/870449.164.5050
    P-*G0103-H131/2100449.1103.5040
    P-*G0103-H235/8152449.1122.0030

    Stock No.No.of BoltBolt DiameterClamp DimensionApproximate Ship WeightStandard
    LengthWidthThickness
    Inchmmkg./100 pcsPkg.Qty./Carton
    Light Duty-Press Forged
    P-G0101-L111/242448.324.4050
    P-G0101-L215/850448.328.5050
    P-G0102-L121/262448.348.4050
    P-G0102-L225/870448.352.0050
    P-G0103-L131/2100448.383.0040
    P-G0103-L235/8152448.397.5030

    Product Description

    • Three Bolt Guy clamp, also called 3 bolt suspension clamp, rolled from carbon steel with straight parallel grooves that will not damage the strand.
    • 3 Bolt Guy Clamp is mainly used on communication line, together with the stay wire and anchor rod to make the pole stable. When the stay wire goes across the anchor rod, the 3 bolt clamp bites the end of the stay wire to prevent the stay wire from creeping down. The grooves of the guy clamp clad the stay wire, and the bolt will fasten two pieces of guy clamp clamping the stay wire.
    • In another installation way, the 3 bolt guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.
    • The guy clamp consist of two plates with three bolts equipped with nuts. The clamping bolts have special shoulders to prevent turning when the nuts are tightened.
    • Guy clamp is a type of suspension clamp for overhead power line and communication line, it can be used in loop type guy dead-ends. Guy clamp is also called guy wire clamp, parallel groove clamp or straight cable suspension clamp.
    • According to the number of clamping bolts used on the clamp, there are 1 bolt guy clamps, 2 bolt guy clamps and 3 bolt guy clamps. Guy clamps are designed and manufactured for optimum performance levels.
    • In terms of the design and the structural appearance, these guy clamps are straight and have parallel grooves. This design ensures that the guy strands are not damaged during the installation process. The design also ensures that the guy clamps have the maximum holding strength.
    • Guy clamps come in different sizes. The size is determined by the length, width, and diameter of the groove. This means that some guy clamps are longer or wider than others. At the same time, the groove of some guy clamps can support wider strands than others.
    • The plate halves of the guy clamp are aligned evenly hence easing the installation process. You will not make any mistake when it comes to installing the strands through the guy clamp.
    • If you would like to get more information about this overhead line fitting, including the guy clamp price, just contact us. We will give you all the technical information that you need to know about the guy clamp.
