    SWG-25 Hydraulic Pipe Bender Electric Bar Bender Overhead Line Stringing Tools

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : SWG-25
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000pieces/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    SWG-25 Hydraulic Pipe Bender Electric Bar Bender Overhead Line Stringing Tools

    Overhead Line Stringing Tools SWG-25 Hydraulic Pipe Bender Electric Bar Bender

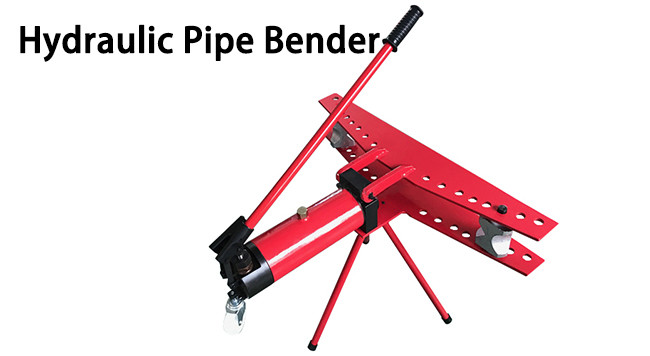

    Hydraulic Pipe Bender

    Uses: It is suitable for bending and forming of galvanized water pipes,thick steel pipes,conductor pipes and gas pipes.

    Explain:Type CPB need to be equipped with a hydraulic pump.

    ModelSWG-25SWG-1SWG-2SWG-3SWG-4SWG-255
    Output60100160180200200
    Stroke(mm)120160230320380380
    Wall thickness(mm)1.5-52-52.5-52.5-52.5-62.5-6
    Weight(kg)162047.597137186
    Beding angle(rad)π/2≤a≤ππ/2≤a≤ππ/2≤a≤ππ/2≤a≤ππ/2≤a≤π≤90°
    Pipediameter(mm)

    Φ10 Φ13

    Φ16 Φ19

    Φ22 Φ25

    Φ13 Φ16 Φ19 Φ22

    Φ28 Φ34


    Φ22 Φ28 Φ34 Φ42

    Φ48 Φ60


    Φ22 Φ28 Φ34 Φ42

    Φ48 Φ60

    Φ75.5 Φ89

    Φ22 Φ28

    Φ34 Φ42

    Φ48 Φ60

    Φ75.5 Φ89

    Φ108

    Φ22 Φ28

    Φ34 Φ42

    Φ48 Φ60

    Φ75.5 Φ89

    Φ108 Φ114

    SWG-25 Hydraulic Pipe Bender Electric Bar Bender Overhead Line Stringing Tools
