    100kN Reel Carrier Trailer Overhead Line Stringing Tools TYDLG-10T

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : DLG-10T
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    100kN Reel Carrier Trailer Overhead Line Stringing Tools TYDLG-10T

    TYDLG-10T Overhead Line Stringing Tools 100kN Reel Carrier Trailer

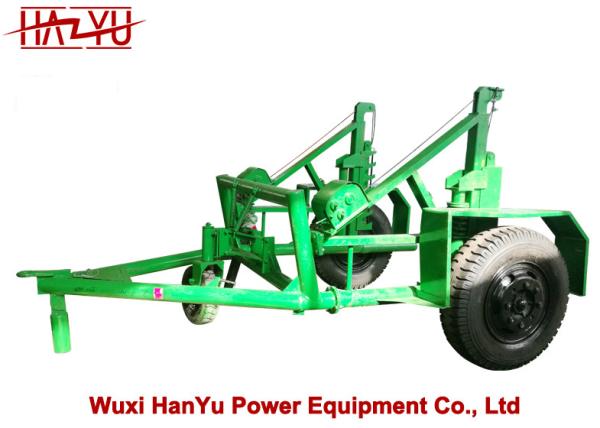

    TYDLG Reel Carrier Trailer

    • The reel carrier is made of welded steel with protective coating.
    • Two hydraulic jacks powered by a manual pumpare used to lift the reel.
    • one disc brakes acting on the reel shaft is designed to control the unwinding tension.
    Model

    Max Capacity

    Reel Dimensions

    Overall dimensions

    Weight

    DiameterWidthAxel diameter
    (kN)(mm)(mm)(kg)
    DLG-3T3024001250803800×2300×2200900
    DLG-5T50280014501004000×2600×25001500
    DLG-8T80340018001204300×3200×27002300
    DLG-10T100360020001504600×3800×29003100
    • Special models with different characteristics can be designed on demand.
