    80kN Capacity Reel Carrier Trailer Overhead Line Stringing Equipment

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : DLG-8T
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

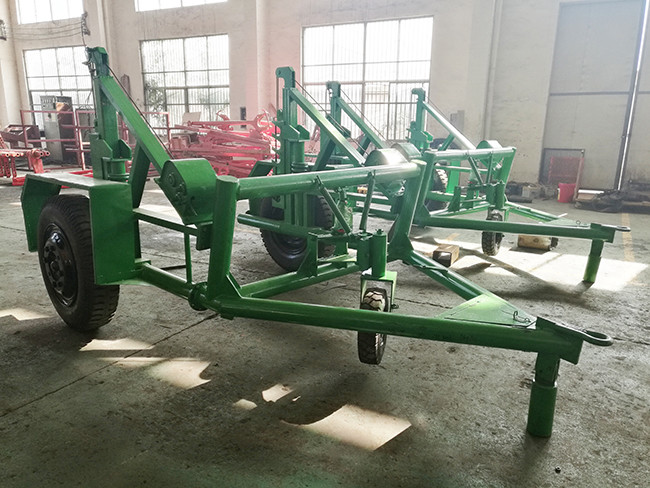

    80kN Capacity Reel Carrier Trailer Overhead Line Stringing Equipment

    Overhead Line Stringing Tools 80kN Capacity Reel Carrier Trailer


    TYDLG Reel Carrier Trailer

    Model

    Max Capacity

    Reel Dimensions(mm)

    Overall dimensions

    Weight

    (kN)DiameterWidthAxel diameter(mm)(kg)
    DLG-3T3024001250803800×2300×2200900
    DLG-5T50280014501004000×2600×25001500
    DLG-8T80340018001204300×3200×27002300
    DLG-10T100360020001504600×3800×29003100
    The reel carrier is made of welded steel with protective coating.
    Two hydraulic jacks powered by a manual pumpare used to lift the reel.
    one disc brakes acting on the reel shaft is designed to control the unwinding tension.
    Special models with different characteristics can be designed on demand.
