    50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : DLG-5T
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100sets/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter

    Overhead Line Stringing Tools Reel Carrier Trailer Axel Diameter 100mm

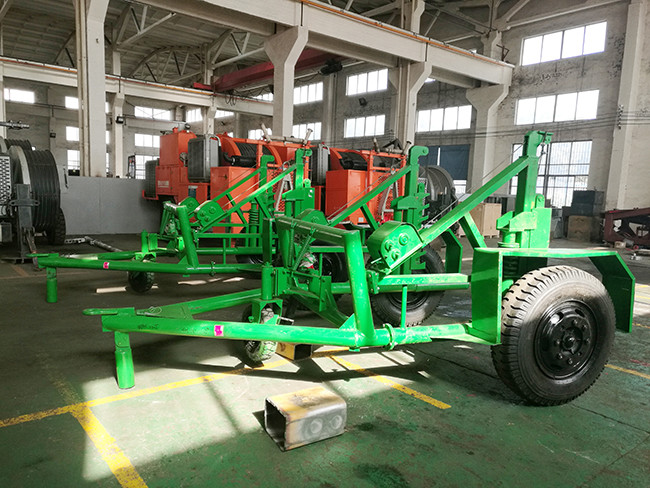

    TYDLG Reel Carrier Trailer

    The reel carrier is made of welded steel with protective coating. Two hydraulic jacks powered by a manual pumpare used to lift the reel. one disc brakes acting on the reel shaft is designed to control the unwinding tension.
    Special models with different characteristics can be designed on demand.
    Model

    Max Capacity

    (kN)

    Reel Dimensions(mm)

    Overall dimensions

    (mm)

    Weight

    (kg)

    DiameterWidthAxel diameter
    DLG-3T3024001250803800×2300×2200900
    DLG-5T50280014501004000×2600×25001500
    DLG-8T80340018001204300×3200×27002300
    DLG-10T100360020001504600×3800×29003100

    50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter

    Quality 50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter for sale
