    Hot Dip Galvanized Anti Twisting Steel Wire Rope 55kn Anti Twist Wire Rope

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : YL9-12x19W
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50000m/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Hot Dip Galvanized Anti Twisting Steel Wire Rope 55kn Anti Twist Wire Rope

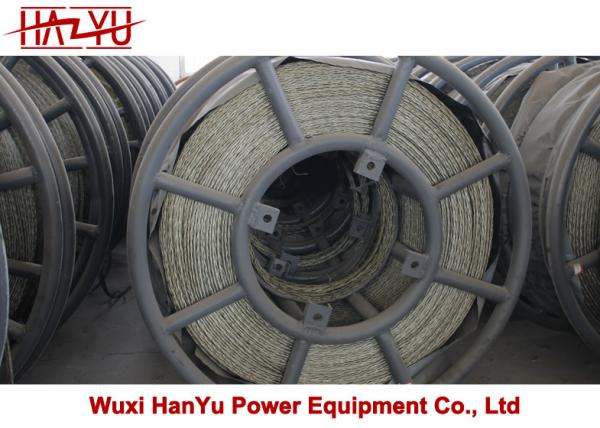

    Anti Twist Steel Rope With High Strength Hot Dip Galvanized Steel


    TYFUX ANTI-TWISTING STEEL BRAIDED ROPE

    Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.


    Item no.Normal Diameter (mm)StructureBreakage tension(kN)Standard Length (m)

    Diameter of spool

    (mm)

    Total weight

    (kgs)

    Empty spool weight

    (kgs)

    YL9-12x19W912 Strands55100085029432
    YL10-12x19W1012 Strands671000100039047
    YL11-12x19W1112 Strands801000100045447
    YL12-12x19W1212 Strands1001000110055252
    YL13-12x19W1312 Strands1201000110064252
    YL16-12x19W1612 Strands1581000125088660
    YL18-12x19W1812 Strands21010001400115474
    YL20-12x29Fi2012 Strands25010001400139474
    YL22-12X29Fi2212 Strands32010001400125874
    YL24-12x29Fi2412 Strands3608001440147478
    YL26-12x29Fi2612 Strands4207001440172378
    YL28-12x29Fi2812 Strands48050016001401116
    YL30-12x29Fi3012 Strands54050016001666116
    YL20-18x19W2018 Strands30010001440136878
    YL22-18X29Fi2218 Strands389800144078
    YL24-18x29Fi2418 Strands440800144078
    YL28-18x29Fi2818 Strands58050016001655116
    YL30-18x29Fi3018 Strands65850016001900116
