    Stringing Tools Hydraulic Tensioner TY1x30D-1800 With Diesel Engine

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY1x30D-1800
    Certification : ISO9001, CE
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 10Sets/Month
    Delivery Time : 20-45Days
    • Product Details
    • Company Profile

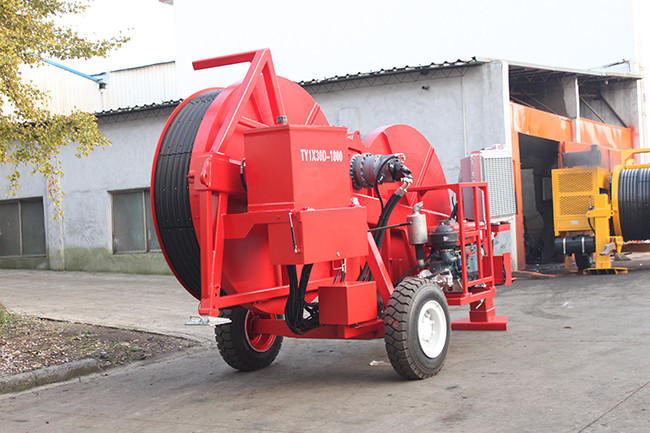

    Stringing Tools Hydraulic Tensioner TY1x30D-1800 With Diesel Engine

    Transmission Line Stringing Tools Hydraulic Tensioner with Diesel Engine


    The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.


    Characteristics

    Bull-wheel diameter: 1800mm

    Max conductor diameter: 40mm

    Groove number: 5

    Total weight: 4600kg

    Overall dimension (length*width*height): 5000*2000*2600mm

    Performance

    Max continuous tension: 30kN

    Speed at max tension: 2.5km/h

    Max speed: 5km/h

    Pull at max speed: 15kN

    Max reverse pulling force: 20kN


    Main configuration

    Engine: Changchai China

    Hydraulic pump: German Concentric

    Main motor: French Leduc

    speed reducer: German Rexroth / Italy Bonfiglioli

    Hydraulic valve: German Rexroth

    Hydraulic meter: German WIKA


    Engine

    Single cylinder diesel engine 18kw(25hp)

    Electrical system 12V


    Hydraulic Transmission

    The machine can realize step less speed
    The machine is provided with tension presetting system


    Additional Devices

    Air brake system for the trailer (extra charge)

    Hydraulic conductor clamps for drum change operations (extra charge)

    Swivel guide rope roller

    Trailer for towing at max speed of 15 km/h


    Configuration

    Hydraulic dynamometers

    Hydraulic oil cooling system

    Grounding connection point
