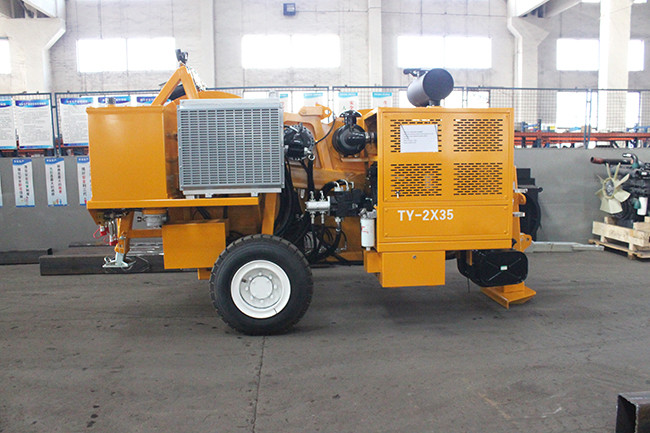

TY2x35 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1300mm

Max conductor diameter: 40mm

Groove number: 2x5

Total weight: 4500kg

Overall dimension (length*width*height): 4300×2250×2700mm

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth / Italy Bonfiglioli

Main hydraulic valves: USA Sun / Italy ATOS

Performance

Max intermittent tension: 2x40kN

Max continuous tension: 2x35kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 2x20kN

Max reverse pulling force: 2x30kN

Max reverse pulling speed: 5km/h

Engine

Diesel 77kw(103hp)

Cooling system water

Electrical system 24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Digital speed and meter counter

Grounding connection point

Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices

Lighting system for the trailer

Air brake system for the trailer (extra charge)

2 hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller
