    2x40kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY2x35
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 Sets/Month
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

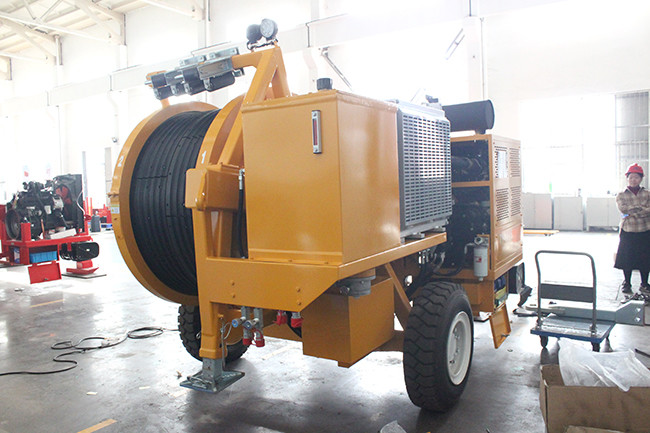

    2x40kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment

    Transmission Line Stringing Tools Max Intermittent Tension 2x40kN Hydraulic Tensioner


    TY2x35 Hydraulic Tensioner

    • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

    Characteristics

    • Bull-wheel diameter: 1300mm
    • Max conductor diameter: 40mm
    • Groove number: 2x5
    • Total weight: 4500kg
    • Overall dimension (length*width*height): 4300×2250×2700mm

    Performance

    • Max intermittent tension: 2x40kN
    • Max continuous tension: 2x35kN
    • Speed at max tension: 2.5km/h
    • Max speed: 5km/h
    • Pull at max speed: 2x20kN
    • Max reverse pulling force: 2x30kN
    • Max reverse pulling speed: 5km/h

    Engine

    • Diesel: 77kw(103hp)
    • Cooling system: water
    • Electrical system: 24V

    Main configuration

    • Engine: Cummins
    • Hydraulic pump: German Rexroth/Dnish Danfoss
    • Main motor: German Rexroth/French Leduc
    • Speed reducer: German Rexroth / Italy Bonfiglioli
    • Main hydraulic valves: USA Sun / Italy ATOS

    Additional Devices

    • Lighting system for the trailer
    • Air brake system for the trailer (extra charge)
    • 2 hydraulic conductor clamps for drum change operations (extra charge)
    • Swivel guide rope roller

    Configuration

    • Hydraulic dynamometers
    • Hydraulic oil cooling system
    • Digital speed and meter counter
    • Grounding connection point
    • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

    Hydraulic Transmission

    • The machine can realize step less speed.
    • The machine is provided with tension presetting system.
